Double Head Automatic Keg Washer Stainless Steel With Steam Sanitization

Product Categories

Jinan Shun Long Machinery Co., Ltd.

Contact Now

Double Head Automatic Keg Washer Stainless Steel With Steam Sanitization

Name: Double Head Automatic Keg Washer Stainless Steel With Steam Sanitization
Brand: SLET
Price: 8 USD

China Double Head Automatic Keg Washer Stainless Steel With Steam Sanitization wholesale

Brand Name : SLET

Model Number : Keg washer

Certification : CE CCC

Place of Origin : China

MOQ : 1 set

Price : USD 8,000 Per set

Payment Terms : T/T

Supply Ability : 18 sets per month

Delivery Time : 20 working days after the deposit

Packaging Details : PE paper & iron frame

Material : SS304 / 316

Heating : electricity / steam

Control : automatic / Semi-automatic

Exhausting : Steam condenser

Brewhouse : two bodies and three vessels

Fermenters : jacketed and insulated tanks

Inner tank process : pickling & passivation

Contact Now

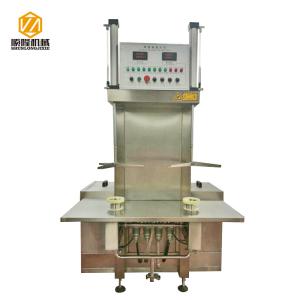

stainless steel double head Keg washer with Steam sanitization

Product Description

Double heads

1.dimension:1200mm*1350mm*1900mm
2.weight:175kg
3.power:2.2kw
4.production capacity:80-100 barrels/h(20L)

Double Head Automatic Keg Washer Stainless Steel With Steam Sanitization

FAQ

Look at your lb/hour rating for the steam requirement in addition to the temperature.

Then check whether the steam (condensate) is recycled--it probably isn't. If it isn't, you need a "total waste" or "open" steam system. Most brewery steam systems are "closed", where the condensate from the used steam is recycled to the boiler. This keeps the water relatively clean, requiring treatment only when water is added to the system. An "open" steam system requires all the water to be treated--and fully treated--no dissolved solids. Any dissolved solids end up being deposited solids in your steam chamber, severely reducing its efficiency and limiting its lifespan.

If you have very, very, pure water, you might be able to get away with simple filtration and in-line injection of water treatment (oxygen neutralizers, pH adjusters, etc). Otherwise, you're looking at a nano-filtration or RO plant large enough to supply the needs of the steam generator.

-TT

II Configuration

Item	Capacity	Material	Heating method	Mixed mode
2-vessel	100L	304 stailess steel(food grade)	Steam &electricity &fire	[Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
	200L			[Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
	250L			[Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
	500L			[Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
	3BBL			[Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
	3.5BBL			[Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
	5BBL			[Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
	7BBL			[Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool

Beer brewing system’s analysis

item	SLET-0.1	SLET -0.2	SLET -0.3	SLET -0.5	SLET -1.0	SLET -2.0
Production capacity	100L/day	200L/day	300L/day	500L/day	1000L/day	2000L/day
floor space	15m2	25m2	35m2	50m2	80m2	120m2
Total power	12kw	12kw	12kw	15/36kw	22/72kw	31/144kw
Maximum hourly water consumption	0.2m3/h	0.4m3/h	0.5m3/h	1.0m3/h	1.5m3/h	2.0m3/h
Total water used	0.5m3/d	1.m3/d	1.5m3/d	2.5m3/d	5m3/d	10m3/d
Consumption of malt	20kg	40kg	60kg	100kg	200kg	400kg
Consumption of hops	60g	120g	180g	300g	600g	1.2kg
Yeast	100g/1L	200g/2L	300g/3L	500g/5L	1kg/10L	2kg/20L
Maximum steam		0.017t/hour	0.017t/hour	0.05t/hour	0.10t/hour	0.20t/hour

Shun Long Servie

Pre-sale service:

1. Make the equipment details specifications to customers

2. We can supply the OEM process, according to the drawings, the samples to customized the beer equipment

3. Layout plan in CAD drawings of beer machine.

4. The competitive price and the timely delivery.

After-sale service:

1. Provide the required customs declaration files, timely tracking freight

2. The equipment main configurationgs for 3 years warranty time, such as the valves and so on.

3. Professional engineers for installation, commissioning, maintenance.

4. Directed by executable remote installation(with no experience in beer, equipment installation experience, can also perform operations, please make this clear before custom equipment, we have successful cases)

If you are interested in our machines, please don't hesitate to contact me.

We can meet you what you want, looking forward to your inquiry. Let's go together in the process of cooperation to the good prospects.
