3000L , 4000L , 5000L beer brewing equipment for microbrewery
Product Description:

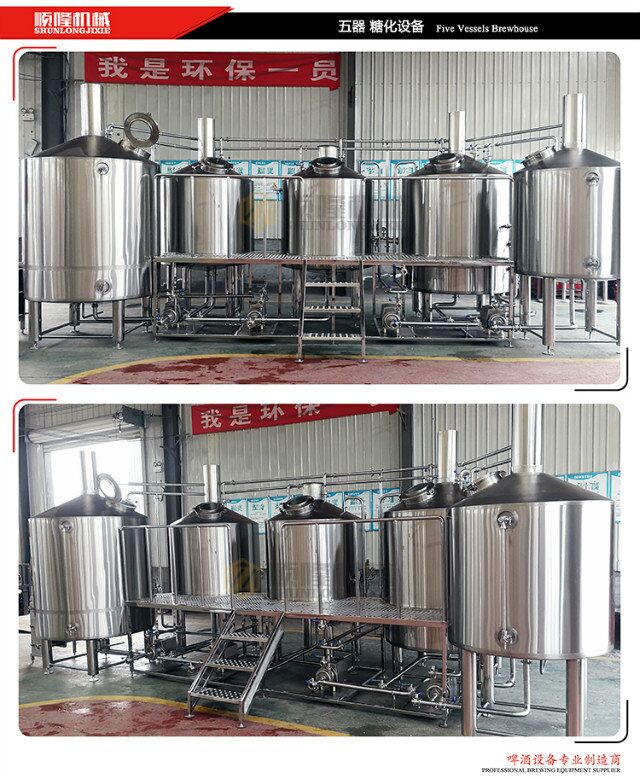

This type of 3000L, 4000L, 5000L beer brewing system is design for micro brewery, to make different beers, ale, lager etc. It contains four vessls brewhouse, fermentation tanks, chiller, cleaning system. This set equipment uses PLC controller, temperature, and time display on the screen. Easy to operate, semi-automatic. Equipped with 15- 20 fermentation tanks, and 6 bright beer tanks to store the beer.
Brewhouse Specification
| Output/Brew | 30 HL-50HL |
| Brew/Week | 2~6 |
| Output/Week | 60~100HL |
| Electric Supply | 3phase / 380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Steam |
| Area Request | >60M2 |
| Brewmaster | 1 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
Product characters
- Pumps with ABB motor
- integrated stainless steel 304 working platform
- Heat exchanger – SUS 304
- wort grant, hops back
- Pipelines and valves

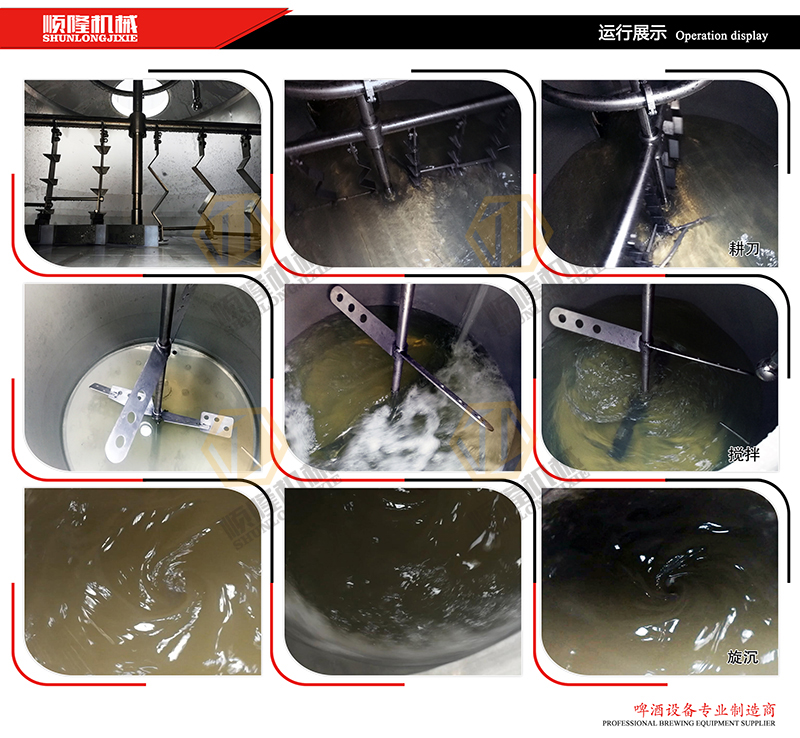

- Mash/lauter tun - grist hydrator, false bottom, rake, sparging
- Kettle/whirlpool tun – steam/ electric/ direct gas fired heating system, tangential entry
- 8-12 fermentation tanks/bright tanks
- malt Miller
- Chiller and Glycol tanks
- CIP system
- Control system, semi- automatic control
- Complete engineering support and onsite installation

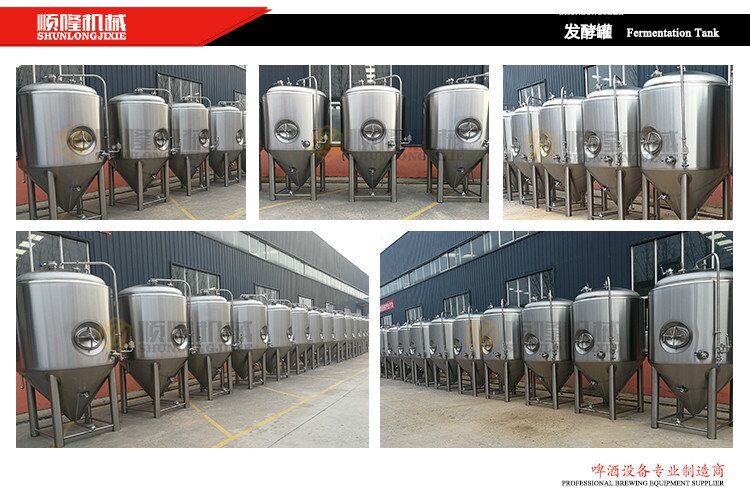

Standard features/specs for SL-stainless steel conical fermenter:
o Pressure valve, relief valve
o CO2 relief valve
o Coolant inlet and outlet
o Sample valve
o Side or top manway
o Top Dry Hopping Port
o CIP connections
o Wort inlet and yeast outlet
o Racking arm
o Temperature and pressure gauges
Learn more details about Shun Long equipment
1. Inner are of international standards of quality 304 stainless steel material, high-pressure polyurethane foam insulation, the jacket in accordance with customer requirements, can be polished stainless steel, matt, carbon steel, the form of spraying.
2. The application of international standardized fermented beer production technology, a wide range of temperature control application technology, mirror polishing inside the tank, up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet automatic cleaning and disinfection of the controlled system requirements.
3. Fermentor cooling jacket at the same time meet the needs of the country the world’s technical standards, the provision of Maitreya paneles, arched passages spinulosa Watt Jacket channel heat exchangers and other methods to meet different cooling media and the pressure of the heat exchange technology needs

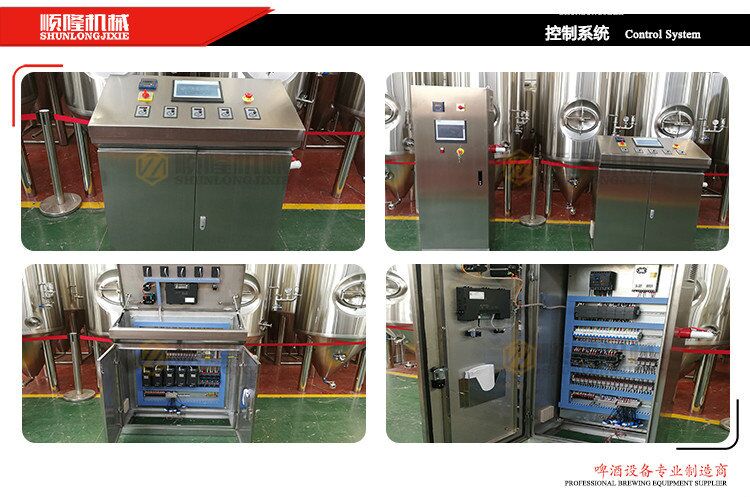

PLC Semi-automatic Control System
Shun Long Service
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. 3. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
4. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
