Useful capacity:1000L.(+25% head space)
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
Insulation: Polyurethane; TH=80mm
Glycol Jacket: Dimpled plate on cone and side
Dished head and 60 degree cone bottom

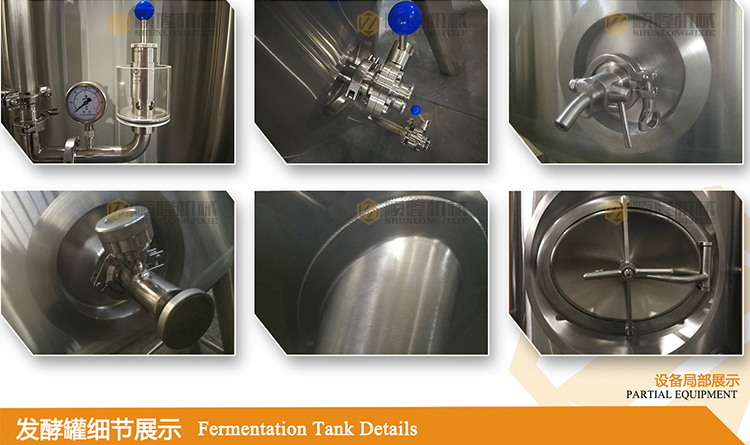

Top Manhole:φ330*430mm.
CO2 blow-off arm with butterfly valve
Full sanitary sampling valve_Perlic Style
Mechanical relief valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Dry hopping port with solid end cap
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Thermowell for high accuracy temperature sensor
Fermentation tank pressure:Design pressure 0.5MPa;Working pressure 0.2Mpa.
Other Size & Specification
| Capacity | Cylinder(ODxH) | TOTAL HEIGHT | Inner Thickness |
| 3BBL | 960x750mm | 1880mm | 3mm |
| 5BBL | 1060x850mm | 2250mm | 3mm |
| 7BBL | 1160 x 900mm | 2450mm | 3mm |
| 10BBL | 1260 x 1150mm | 2800mm | 3mm |
| 15BBL | 1500 x 1220mm | 3100mm | 3mm |
| 20BBL | 1600 x 1400mm | 3500mm | 3mm |
| 30BBL | 1800 x 1650mm | 3760mm | 3mm |
| 40BBL | 1900 x 1850mm | 4210mm | 3mm |
| 50BBL | 1900 x 2050mm | 4750mm | 3mm |
| 60BBL | 2200 x 2150mm | 4830mm | 4mm |
| 80BBL | 2200 x 2900mm | 5780mm | 4mm |
| 100BBL | 2200 x 3600mm | 6450mm | 4mm |
After-Sales Service
1. Guarantee: 3 years
2. Installation: Our engineers team will provide you the perfect installtion and commissioning service. Almost of them have been to 5 countries even more.
3. Our appointed agents are in US, Europe, Russia and other ten countries, they will provide you 24 hours service.
Reference equipment

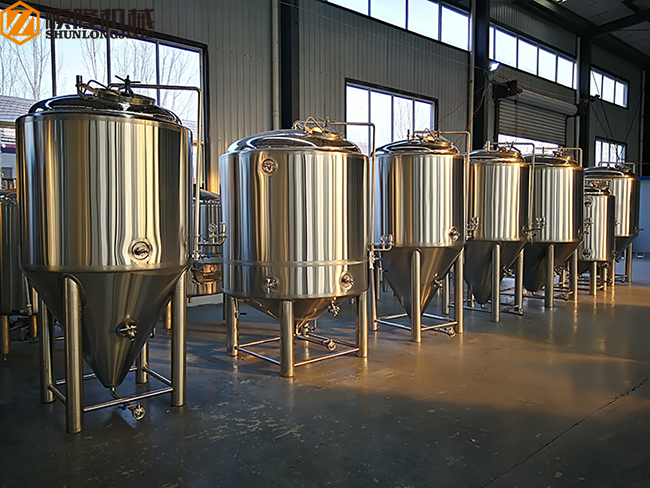

My company could manufacture fermentation tanks from 100L to 100HL.

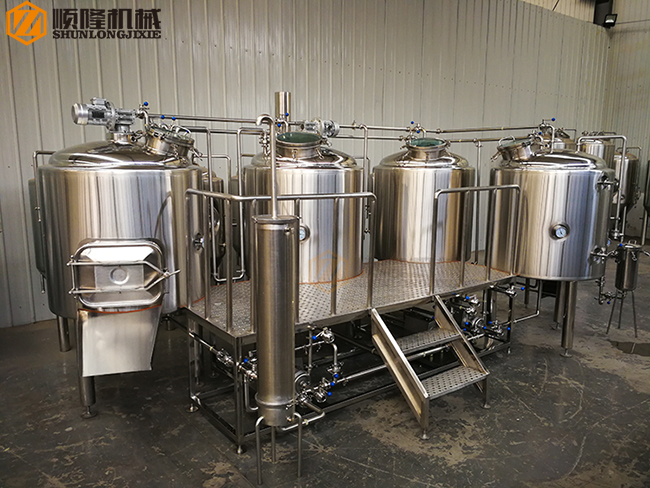

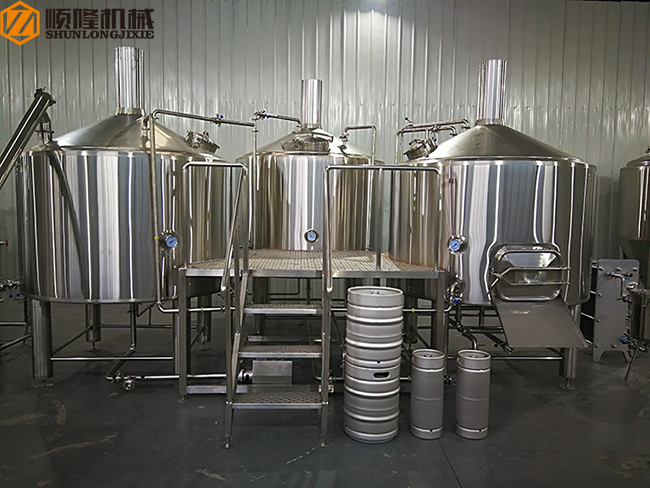

Also manufactures beer brewing equipment for home brew, micro brewery, brewpub, large brewery.

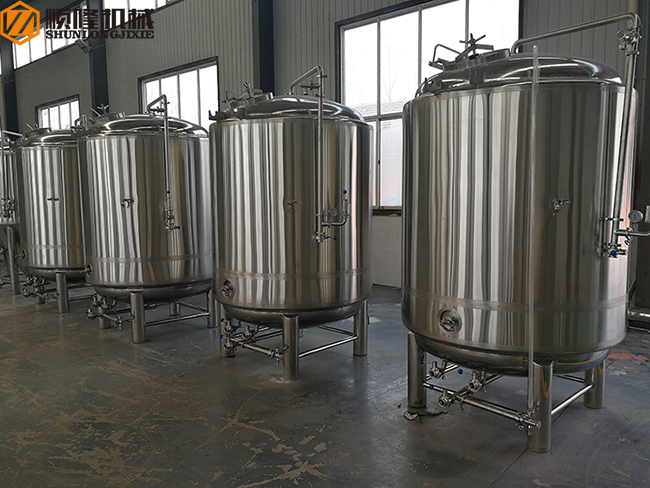

Reference pictures
